Integrated Engineering (IE) - Carbon Fibre Intake System | Audi RS6/RS7 C8

More power, more sound, more fun

• 60-70+ WHP over stock airbox (tune & fuel dependant)

• 60-70+ WTQ over stock airbox (tune & fuel dependant)
• Up to 230 CFM flow increase over the stock airbox
• Unique internal design reaches peak boost faster improving acceleration
• Increased flow rate for tuned engines and hybrid turbos
• Optimized airflow and volume with minimal pressure drop
• High-level motorsport engineering for the highest possible power gains
• Delivers maximum gains from ECU tuning & hardware upgrades
• Greatly reduces airflow turbulence for increased turbo efficiency
• CFD software engineered for optimal flow with excellent laminar properties
• Complete carbon fiber multi-piece system
• Largest possible internal volume for available space
• Advanced 3D scanning tools are used for an exacting fit and finish

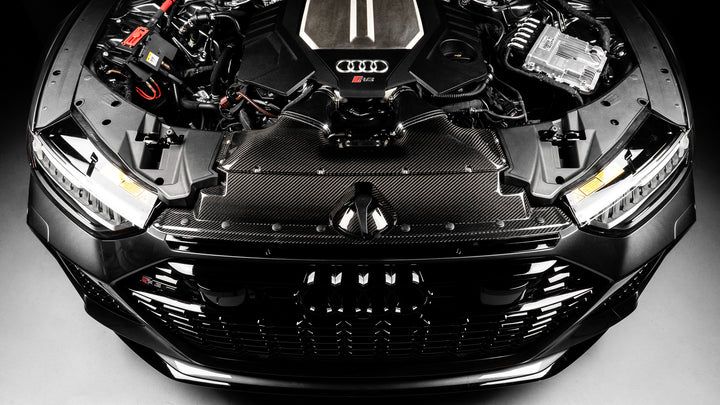

• Perfectly blends into the vehicle’s bay for a high-end look
• Long life high-gloss carbon fiber construction
• Performance-designed high-flow pleated cotton filter

The Audi C8 RS6 and RS7 include a unique factory intake design built on the factory radiator shroud. This location provides access to cool air from the front of the grill. Still, it lacks the internal volume, flow optimization, and filter efficiency to support higher power from ECU tunes and turbo upgrades. Extreme engineering practices were required to redesign a proper motorsport intake maximizing the potential of all available space within the challenging factory intake location. The resulting IE performance system delivers power and sound with breathtaking looks for your 4.0TT twin-turbo engine.

Continue reading below for a more in-depth overview of design strategies and features.

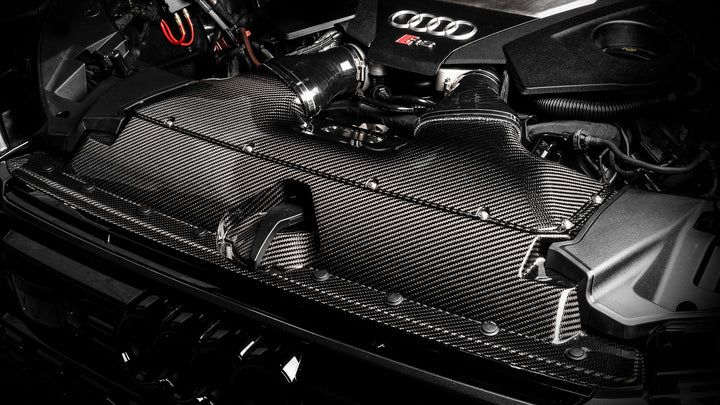

The entire airbox is genuine carbon fiber providing superior heat dissipation, lightweight, and solid yet thin-wall construction. Carbon fiber can be molded into near endless shapes allowing our engineers to design complex angles, corners, and extremely tight tolerances to maximize flow and volume in the design without material restrictions or compromises. The final design is all performance on the inside while carrying a stunning gloss carbon weave finish on the outside.

Maximizing intake efficiency requires taking advantage of every millimeter of available space within the tight confines of the factory engine bay. By dramatically increasing the size and design of the air box’s lower and upper sections, the intake can support much higher airflow and volume with superior laminar over the filter, providing unrestricted airflow for higher boost demands and power.

More power requires additional airflow. Maximizing the interior volume of the intake is an attack on two fronts. First, the upper lid has been increased in size, filling all available space under the hood with a much smoother transition to the inlets. Volume is further optimized by increasing the internal size and angle of the filter base. The result is far superior air supply on tap for tuned engines requesting more significant boost pressures than stock.

Increased intake volume is only helpful if the air supply can reach the turbos effectively. High-level computational flow dynamic (CFD) software is leveraged to calculate the best possible internal angles and shapes to reduce turbulence and increase flow inertia. The organic and smooth transitions are a considerable departure from stock, aiding in faster spool times for reduced lag while reaching peak boost pressures at the earliest point in the RPM band possible.

The IE airbox has been optimized with the performance advantage of multiple air supply avenues. The front large air inlet receives outside high-pressure flow from the front of the grille and acts as a ram air design for most of the air supply. Additionally, the bottom airbox inlets pull extra air as required from the low-pressure zone under the intake. These dual zones provide a free air supply across the entire filter and ensure your intake will never be a power limiter for even the most extreme builds.

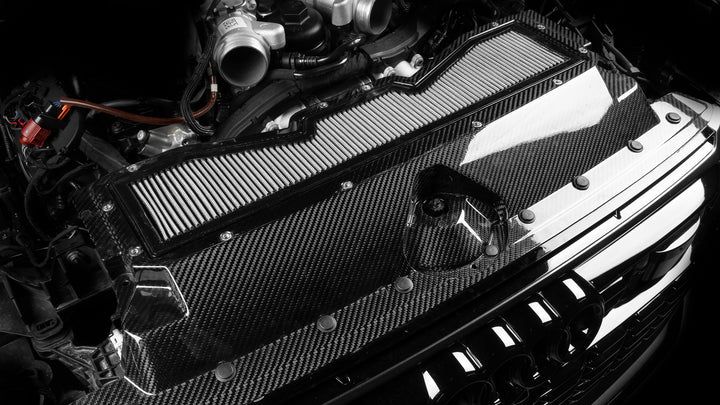

The included high-performance air filter maintains superior filtration properties keeping your engine and turbochargers safe from outside contaminants while dramatically increasing performance. The cotton 4-pleat design allows the intake design to increase airflow velocity while retaining a low pressure drop as the airflow passes through the filter element.

For those looking to extract every bit of power from the intake system, a set of optional IE cast turbo inlet pipes further increase the size and flow of the intake. This combination works together to reduce further drag and turbulence where the increased airflow from the intake transitions into the turbocharger compressor housings.

IE C8 RS6 & RS7 Turbo Inlets will be sold separately with available adapters for stock turbos or TTE1020 hybrid turbos. This product is in development now and coming soon.

Installing your intake not only delivers a performance boost, but also releases a new symphony of turbo, throttle, and engine sounds that will make your throttle pedal more addictive than ever.
You drive a twin-turbo V8 flagship Audi; prepare to sound like one!

IE’s 3D scanning tools create a digital duplicate of the vehicle’s engine bay, grille, bumper, and hood. These scans provide an incredibly high-resolution environment allowing our engineers to take advantage of all available space and perfect an extremely high-end install.
